Abaia

ABAIA

Is our patented sensor module that provides real time monitoring data of the inflow, process, and brine water. The Plug-and-Play design and automated cleaning system assure seamless installation and low maintenance, even in the harshest aquatic environments.

OUR PRODUCT

Discover our cutting-edge water quality data solution, designed for harsh industrial aquatic environments. Our single-sensor module provides real-time measurements of multiple chemical, physical, and biological parameters with zero operational overhead and no maintenance required. With our innovative system, you pay solely for the data you receive, not for the hardware. Enjoy seamless integration and cost-effective performance with just an installation fee.

Abaia head

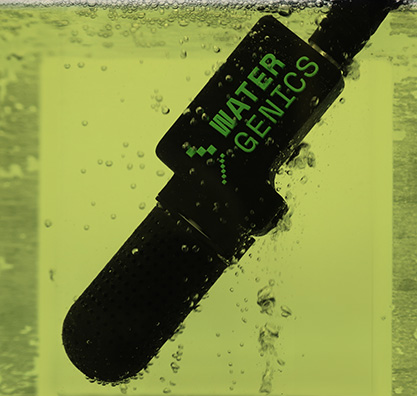

Our patented fully submersible probe is engineered for in-situ measurements in harsh environments. It stays continuously immersed for accurate data collection without sample extraction. The automated cleaning solution reduces maintenance to every 4 to 6 weeks based on the water matrix, and operates reliably at temperatures up to 95°C with pH levels from 1 to 12.

Abaia body

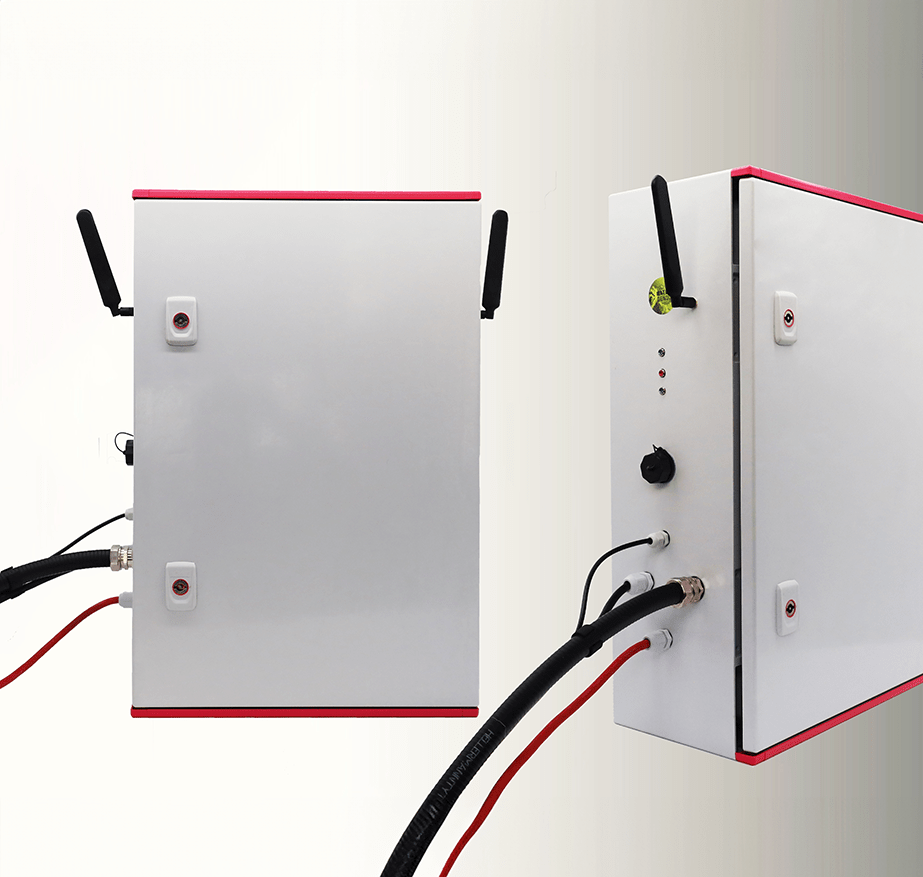

A robust and reliable hardware solution designed for the most demanding environments. Tested in high altitudes and even within the Arctic Circle, this lightweight module, weighing 8 kg, is optionally powered by batteries for unmatched portability. With built-in satelitte connectivity or network options, Abaia ensures seamless data transmission no matter where it's deployed, making it the perfect choice for remote and extreme monitoring applications.

benefits

Increase production

Boost production at every step of the process.

Actionable Insights

Leverage data-driven insights to enhance water treatment processes and ensure optimal performance.

Maximimum Recovery Rates

Operate at peak efficiency by maintaining maximum recovery and better yield.

Optimized Chemical Usage

Save chemical use and prevent plant downtime.

Reduce energy consumption

Cut energy consumption by up to 7%.

Low Maintenance

Benefit from a system that requires minimal maintenance, featuring remote monitoring and self-cleaning capabilities.

Zero Operational Overhead

Enjoy seamless integration with no additional operational burden, ensuring a smooth and efficient process.

show less

Gallery

SPECIFICATION

Category	Parameter	Specification
ENVIRONMENTAL	High turbidity	Over 500 mg/l
	pH range	1 – 12
	TSS	Over 500 mg/l
	TDS	Over 50,000 mg/l
	Solution temperature	0 °C – 95°C
	Humidity	0 – 80 %
DIMENSIONS	Electronics Enclosure [mm]	440 x 190 x 110
	Probe Cable	Ø22 mm x 10 m
	Max. bending radius	150 mm
	Probe Head [mm]	240 x 90 x 60
	Weight	8,000 g
ERROR RATE	Nominal	2%
	Max	5%
ELECTRICAL	Voltage	100 – 240V AC (via ABAIA power supply)
	Power	15W Nominal / 40W Max
	Connectivity	Sattelite or WiFi

ANALITYCS T00L

REFLECT is an ML-based platform for data reporting and visualization.
